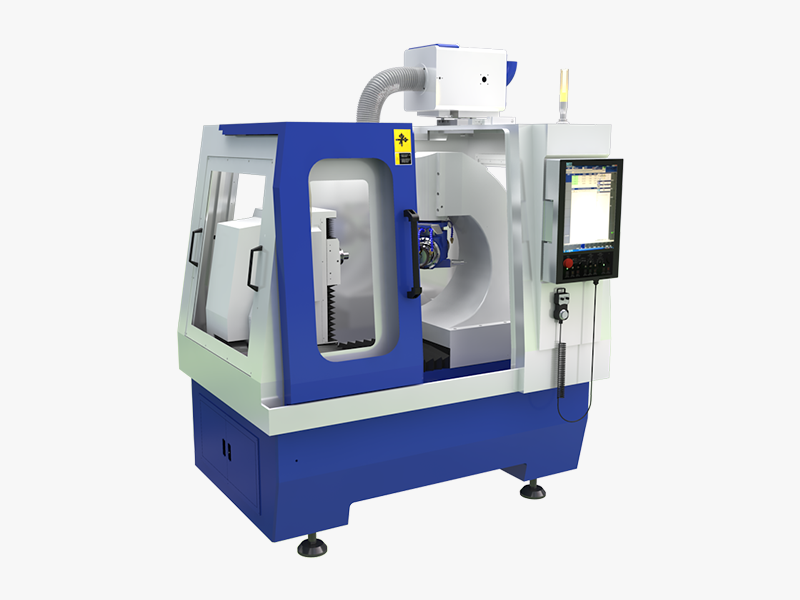

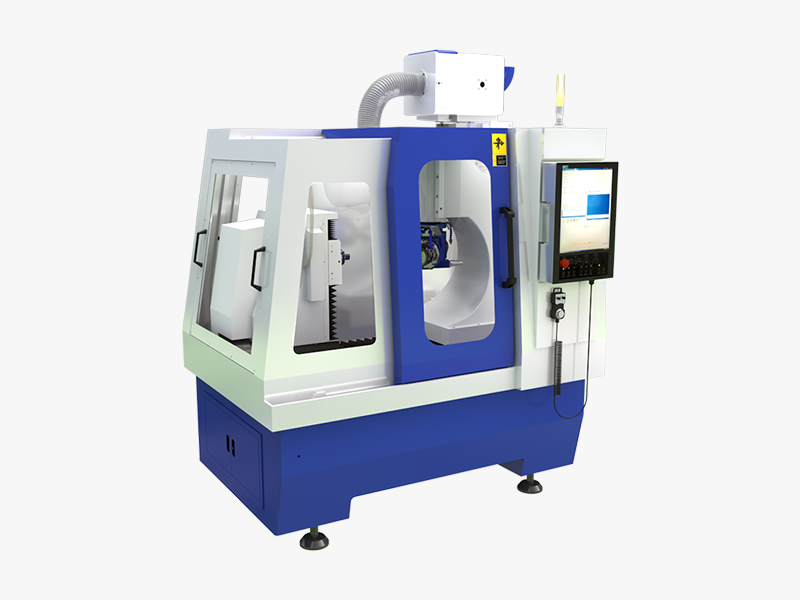

GIVEAL TC3 N2


Main Features

  • Machine body is made of marble, with C-pillar structure and excellent seismic performance;

  • Linear axes use the top brand servo motors, the quality is reliable;

  • Rotary axes use digital direct drive technology, and equipped with high-precision feedback system to eliminate the transmission error;

  • Can install 2 sets of grinding wheels and the maximum carrying 8 wheels at the same time;

  • High-torque spindle for grinding, easy to deal with large-diameter tools;

  • Advanced EtherCAT numerical control system, support industry standards;

.Download the manual on GIVEAL series products>>

Applications

· Used for manufacturing all kinds of precision standard tool and special tool, apply to cutting tool manufacturers of all sizes;

· Used for regrinding various of metal cutting tool, apply to the tool regrinding service centers or end user;

Technical Specifications

Basic  Basic Parameters
Unit
Parameter Values
X-Axis effective travel
mm
420
Y-Axis effective travel
mm
390
Z-Axis effective travel
mm
290
A-Axis effective travel
°
360
C-Axis effective travel
°
305
Max grinding wheel diameter
mm
200
Equivalent max power**
kw
26

** Equivalent to the tool process capability of maximum power equipment at that level.

Machine processing can be flexibly selected SNSTC or NUM software

· SNSTC TOOL BUILDER is a self-developed, simple and efficient tool design and machine operation / programming control software, integrates automatic calibration, motion simulation and other innovative features.

· NUMROTO is a third-party integrated software package for manufacturing and regrinding various tools. It is now integrated into the GIVEAL series of grinding machines, can immediately provide accurate and efficient tool productions.

At present, SNSTC TOOL BUUDER doesn't support to manufacture gear cutter, punch and rotary burrs cutter, but the development work is being carried out closely.

Options

· Multi-functional tool support unit:

Optional multi-functional tool support unit was designed for long slender parts or overweight tools, playing a protective and auxiliary role in grinding process.

· Online grinding wheel resharpening:

The optional on-line resharpening suite is used for removing the debris residue on the surface of the wheel, helping the diamond particles to be fully exposed, to achieve better cutting results, and to reduce improper thermal damage to the workpiece.

· Automatic grinding wheel calibration:

The probe is used for automatically measure the diameter and installation position of wheel ; Wheel measurement process can also be integrated into the programming process to achieve automatic compensation for grinding wheel Wear.

· Remote tailstock center:

For special products processing, you can choose tailstock center similar to the lathe besides support bracke, to obtain excellent processing effect in cylindrical grinding.

· Robot Tool Loader:

Loading and unloading of the tools can be automatically carried out by the robot, which achieve unmanned operation and continuous processing. The loading capacity is determined by the pallets and the size of tools.

· Automatic fire extinguishing suite:

The fire can be automatically sensed and extinguished by high precision sensors, and without any side effects to the machine.

* We reserve the right to change the above technical parameters without prior announcement
