GIVEALASER 3100L-Rsα

Main Features

Independent Robot Tool Loader：supports up to 17 large tools with a maximum length of 350mm (diameter ≤ 180mm, weight ≤ 15kg).
Flexible interface：BT50, BT40, BT30, HSK100, and HSK63 e.g.
Horizontal structure design, better suited for tool processing, maximal tool length is about 450mm.
Rotating Tool and Tiltable Flying Laser Beam: maximal tool diameter is about 300mm .
Integrated with GIVEAL-View online and contact measurement.
Dry Processing & Easy Maintenance，Minimal space and Minimal noise.

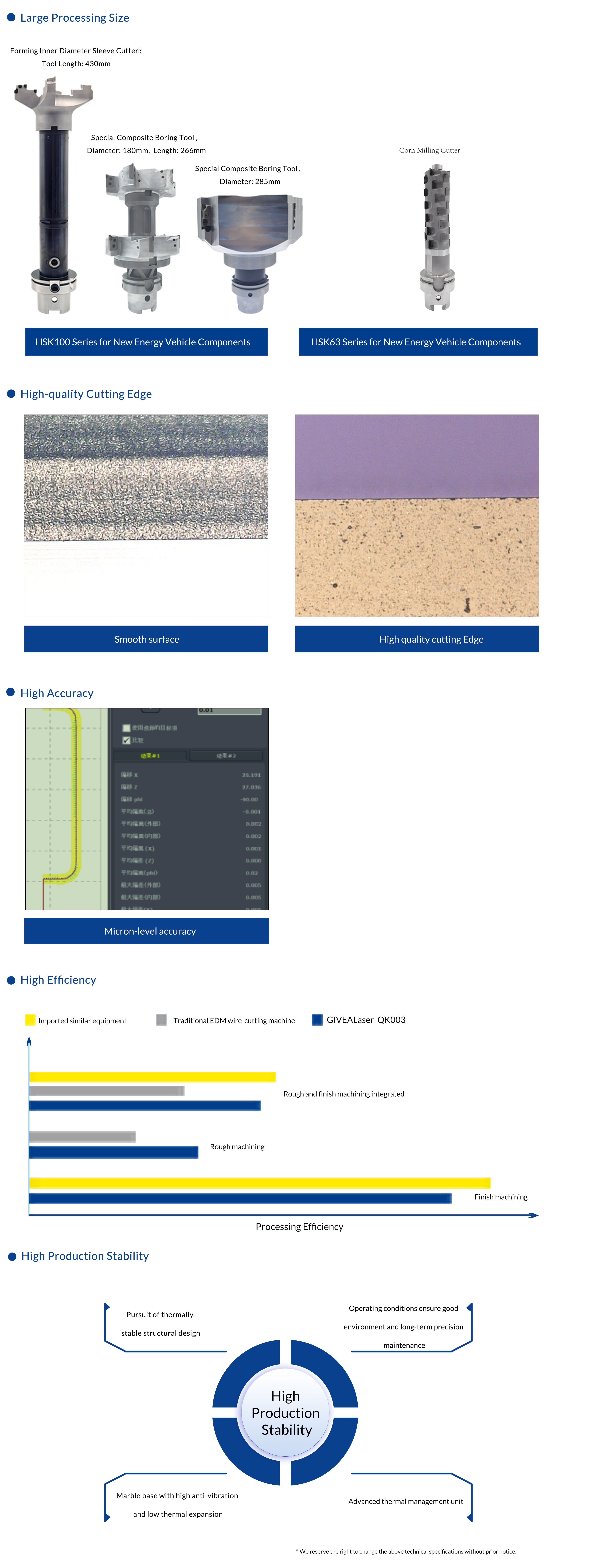

· Production and regrinding of various PCD and CBN cutting tools.

Basic parameters	unit	Reference value
Maximum processable tool diameter¹	mm	300
Maximum processable tool length¹	mm	450
Maximum processable toolweight¹	Kg	19
Maximum processable tool diameter¹	mm	180
Maximum processable tool length¹	mm	350
Maximum processable tool weight¹	kg	15
IndependentRobot Tool Loader¹	-	17
Processing efficiency²	mm/min	Up to3mm/min
Dimensions	LWH (mm)	4500 * 2600 * 2700
Weight	kg	≤6000 +3000
Electrical specifications	V，HZ	Stabilized power supply with a voltage of 380V ± 10% and a frequency of 50 ± 1Hz x 2
Total power	KVA	18+5
Current	A	63
Gas usage specifications	Mpa	0.6~1Mpa x 2 + 0.6~1Mpa x 1

Note: ：¹The maximum tool diameter and length vary according to the machine model configuration.

²Machining efficiency is affected by the material thickness and process requirements.

Based on SNSTC TOOL BUILDER, the following processing technologies are provided:

· Contour blade machining is supported, including geometric elements and spline polyline.

· Asymmetric blade machining is supported.

· Multi-step and multi-contour blade machining is supported.

· Corn milling cutter machining is supported.

· Integral diamond drill tip machining is supported.

· Outer circle allowance machining is supported.

· PCD composite piece severing machining is supported.

· PCD step rough machining is supported.

· Blade edge grinding is supported.

*The processing capability will be continuously upgraded with software updates. For more details, please contact our technicians.
