GIVEALASER 2100
Main Features
-
Classic cradle structure, suitable for conventional tool processing, maximal tool length is about 200mm
-
The laser beam always points in a safe direction, eliminating the risk of injury.
-
Unique symmetrical design, fully supporting forward and reverse cutting processes for left and right-edge tools within the machining range.
-
Equipped with an ultrashort pulse laser, process PCD and CBN materials without consumables, environmentally friendly.
-
Upgradeable to an Picosecond Laser for processing PCD cutting tools with grinding-like quality.
-
Fully integrated with GIVEAL-View online and contact measurement systems.
-
Dry Processing & Easy Maintenance，Minimal space and Minimal noise.
.Download the manual on GIVEAL series products>>
Application scenarios
· For Manufacturing and Regrinding of Conventional PCD and CBN cutting tools
· For processing of Solid PCD、CBN、Ceramic and Cemented Carbide cutting Tools
Technical Specifications
|
Basic parameters |
Unit |
Reference value |
|
Maximum processable tool diameter1 |
mm |
200 |
|
Maximum processable tool length1 |
mm |
200 |
|
Processing efficiency2 |
mm/min |
Up to 3 mm/min |
|
Dimensions |
L*W*H (mm) |
2500 * 2000 * 2500mm |
|
Weight |
KG |
≤4000 |
|
Electrical specifications |
V，HZ |
Stabilized power supply with a voltage of 380V ±10% and a frequency of 50 ±1Hz |
| Total power | KVA | 180 |
|
Current |
A |
63 |
|
Gas usage specifications |
Mpa |
0.6~1Mpa x 2 |
Note： 1The maximum machining diameter and length vary according to the machine model configuration.2Machining efficiency is affected by the material thickness and process requirements.
Processing Capability
Based on SNSTC TOOL BUILDER, the following processing technologies are provided:
· Machining processes for Indexable cutting tools comparable to the GIVEALaser 3100 series.
· Drilling tips, end cutting edges, peripheral cutting edges, step cutting edges, fluting, outer surface for solid PCD, CBN, Ceramic and Carbide cutting tools.
*The processing capability will be continuously upgraded with software updates. For more details, please contact our technicians.

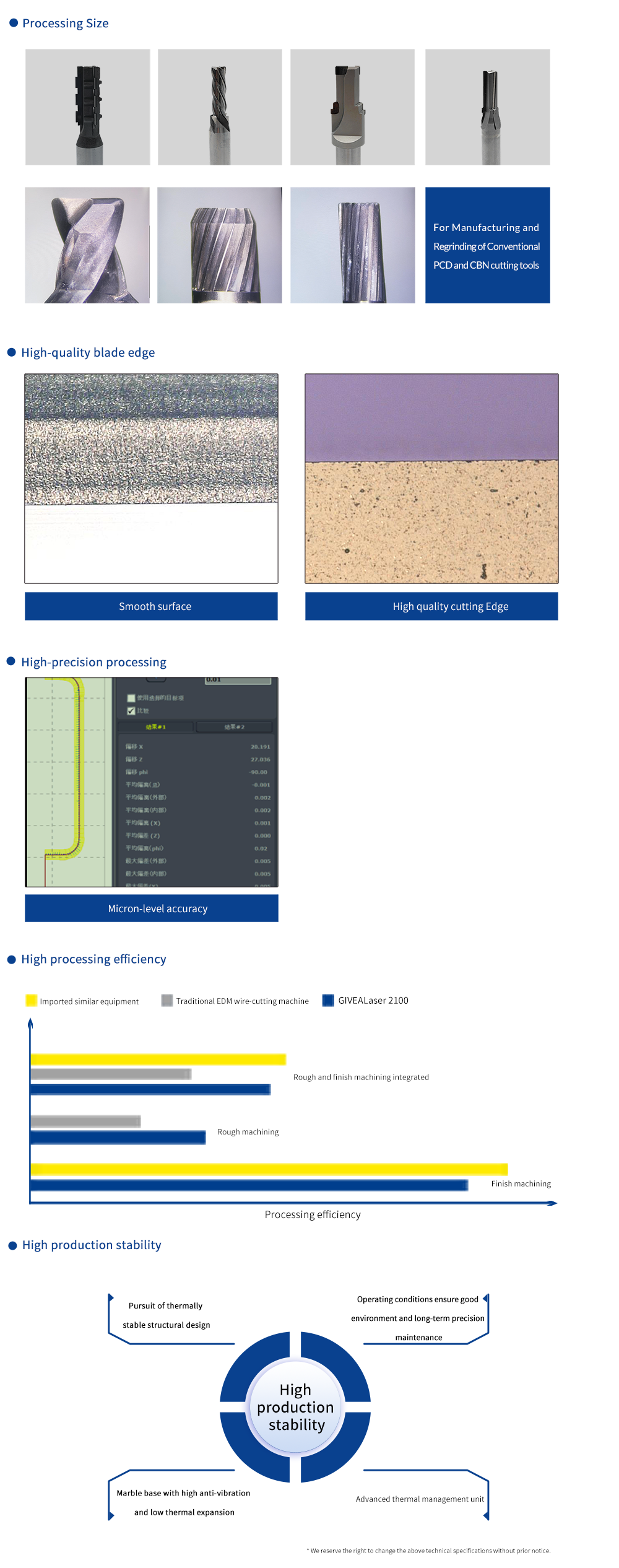

Highlight Advantages
Processing video
